Welcome to the slightly complex world of Cruisemaster 12"drums.

Cruisemaster drums are also around branded "VECHILE COMPONENTS".

Cruisemaster 12"drums vary in a couple of ways and to determine the correct replacement it is critical that the following are measured:

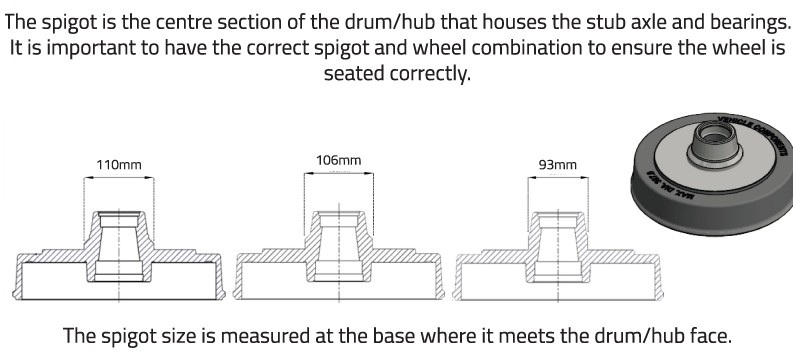

One, the diameter of the hub boss (spigot as above)

Two, the bearings fitted to the original:

VC Set:  Outer: L68149/10  Inner: 25580/20

VT Set: Outer: L68149/10  Inner: LM501349/10

Take note of the Cruisemaster compliance plate that should be affixed to the drawbar, the Model No. gives the details needed to find the correct replacement drum.

Cruisemaster 12" VT Bearings 93mm Spigot Drum 702200     03-FP-A12VT-093-FTR-LC6-3151-STK 12" Cruisemaser 93mm diameter spigot replacement drum fitted with "VT Set" bearings L68149/10 Outer and LM501349/10 Inner     Pricing Price: $485.00

Cruisemaster 12" VT Bearings 93mm Spigot Drum 702196     03-FP-A12VT-093-FTR-LC5-3167-STK 12" Cruisemaser 93mm diameter spigot replacement drum fitted with "VT Set" bearings L68149/10 Outer and LM501349/10 Inner   Pricing Price: $599.00
