D Shackles / Bow Shackles and Chain


Showing 1 - 12 of 12 Results



There has been a bit of discussion and controversy recently about "Rated D Shackles" and while there is no specific rule in relation to the attachment of safety chains to towbars safety should always be the primary concern.
                                  Robert

This is an exerpt from a Queensland Government advisory which helps with the discussion.

Safety Chain Connections (Shackles, Pins or Bolts)

The Department of Transport and Main Roads (Queensland) recommends that the shackles used should meet Australian Standard AS 2741-2002 “Shackles”, or another equivalent recognised standard, and have a break load limit of the shackle is rated at least 1.5 times greater than the ATM of the trailer.

You can easily identify a shackle that meets AS 2741-2002 “Shackles” because they will be permanently marked with the following information:
• The manufacturer’s name or trademark
• Quality grade of the shackle, e.g. (“M” or “4”, “S” or “6”)
Working Load Limit (WLL) or Rating; and
• Identification marking in order to correlate shackle to test certificate



• Rated bolts, chain shackles or other suitable fittings (i.e. hammerlocks) may be used as devices for connection on safety chains providing the break load limit of the device is at least 1.5 times greater than the ATM of the trailer.

Generally, the break load limit of a rated shackle will be six times greater than its (WLL) work load limit.

• Pin diameter of shackle will be greater than the diameter of the main shackle body.

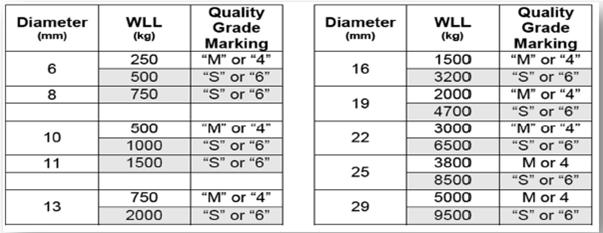

• Same size shackles of different quality grades will have a different WLL (i.e. 6mm “S” grade shackle has a greater WLL than a 6mm “M” grade shackle).

• Stainless steel shackles are unsuitable for trailer use due to the material’s general low resistance to bending stresses.

• S” or “6” grade “D” Shackles bear similar characteristics to “S” or “6” grade Bow Shackles

• Bow shackles provide for greater angular usage compared with “D” shackles




(109680) 1000kg Rated 10mm D shackle

109680



10mm Rated "D" Shackle WLL 1000kg

(Break Load 6000kg)






Pricing

Retail Price $5.65
Save: $1.70
ISP Islington Price: $3.95

(109682) 1500kg Rated 11mm D shackle

109682



11mm Rated "D" Shackle WLL 1500kg

(Break Load 9000kg)




Pricing

Retail Price $6.75
Save: $1.80
ISP Islington Price: $4.95

(109684) 2000kg Rated 13mm D shackle

109684



13mm Rated "D" Shackle WLL 2000kg

(Break Load 12,000kg)




Pricing

Retail Price $11.95
Save: $5.00
ISP Islington Price: $6.95

(109658) 1000kg Rated 10mm Bow shackle

109658



10mm Rated Bow Shackle WLL 1000kg

(Break Load 6000kg)




Pricing

ISP Islington Price: $5.85

(109660) 1500kg Rated 11mm Bow shackle

109660



11mm Rated Bow Shackle WLL 1500kg

(Break Load 9000kg)




Pricing

ISP Islington Price: $6.95

(109661) 2000kg Rated 13mm Bow shackle

109661



13mm Rated Bow Shackle WLL 2000kg

(Break Load 12,000kg)




Pricing

Retail Price $9.95
Save: $2.00
ISP Islington Price: $7.95

(109694) GAL 10mm rated safety chain x 640mm
109694


Pricing

ISP Islington Price: $24.95

(109704) GAL 13mm rated safety chain x 600mm
109704



Pricing

ISP Islington Price: $42.45

(109710) 3.15T 10mm safety chain holder
109710

Pricing

ISP Islington Price: $17.35

(109650) 3.15T 10mm Buterfly Clip (Hammer Lock)
109650


Pricing

ISP Islington Price: $16.95

(109712) 5.3T safety chain holder
109712


Pricing

ISP Islington Price: $22.95

(109716) 5.3T 13mm Buterfly Clip (Hammer Lock)
109716


Pricing

ISP Islington Price: $26.95

Showing 1 - 12 of 12 Results
